LAS – Lifting Arm & Swivel
- Posted by rococosystems in
- No Comments
Call for Price

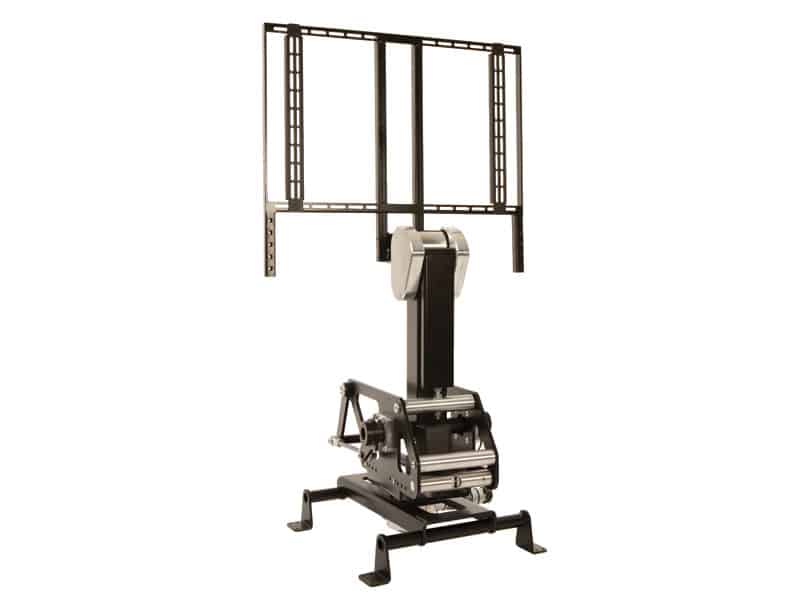

The Lifting Arm with Swivel mechanism is truly one of a kind. Allowing a screen to be stored horizontally in a low level cabinet and then hinged up 90 degrees for viewing with a bi-directional swivel. The Lifting Arm is the only solution that allows low level chests or trunks to conceal large screens without the need for tall cabinetry. Ideal for end of bed applications or low level furniture – the Lifting Arm takes lift design to a new level. Also available as lifting arm without swivel feature – LA
Description
- Unique Design and Functionality
- Near Silent Motor System
- Full Cable Management
- Programmable Swivel Options
- Comprehensive Safety Switches
- Ideal for low height applications
| Height From Floor | 515 mm |
| Max Screen Height | 720 mm |
| Max Screen Width | 550 mm |
| Max Weight | 45 kg |
| Screen Sizes | 40-55” |
| Control Options | RS232 \ Contact Closure \ IR |
| Movement Type | Motorised |
| Shipping Dimensions | 800 x 900 x 550 mm |
| Shipping weight | 65 kg |
