PIC – Picture Lift Mechanism
- Posted by rococosystems in
- No Comments
Call for Price

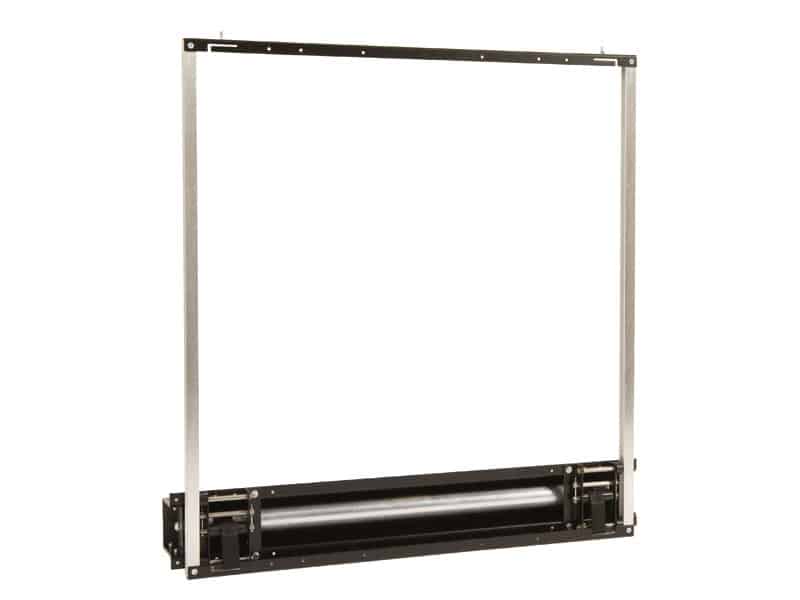

The Picture Lift mechanism allows a flat screen television to be concealed in a recess behind a piece of art work. A range of travel options are available to allow any screen from 32” to 60” to be concealed. The single panel or picture can either raise or lower to reveal the screen – a brilliantly simple Picture Lift mechanism to conceal a TV screen in a wall. (See the PICSIDE for a horizontal movement mechanism or the PICSPLIT for a splitting panel mechanism.)
Description
- Range of travel distances
- Smooth quiet motion
- Option to combine with a motorized bracket
- Complete sheet metal cassette ensures simple installation
| PIC1 | PIC2 | PIC3 | |
| Depth within wall | 70 mm | 70 mm | 70 mm |
| Max weight of moving panel | 10 kg | 10 kg | 10 kg |
| Total travel of panel | 560 mm | 710 mm | 860 mm |
| Screen sizes | 32-40” | 40-55” | 55-60” |
| Control Options | RS232 / Contact Closure / IR | RS232 / Contact Closure / IR | RS232 / Contact Closure / IR |
| Movement Type | Motorised | Motorised | Motorised |
| Shipping Dimensions | 290x980x210 mm | 300x970x280 mm | 300x1270x210 mm |
| Shipping Weight | 9.5 kg | 9.5 kg | 9.5 kg |
Additional information
| Availability: | PIC1, PIC2, PIC3 |
|---|
