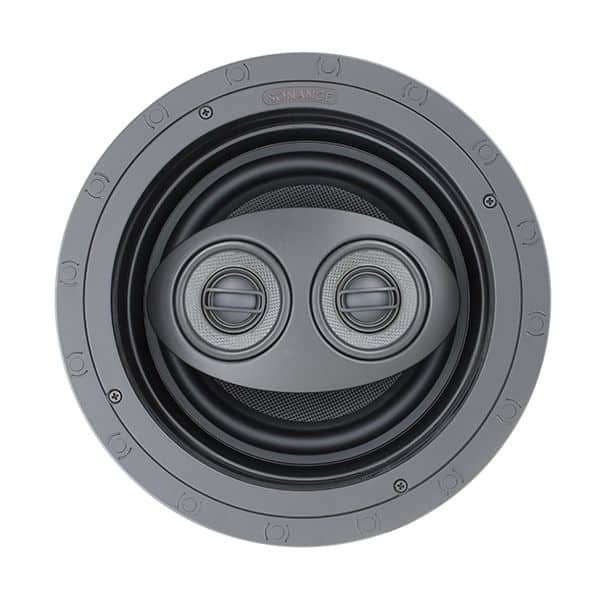

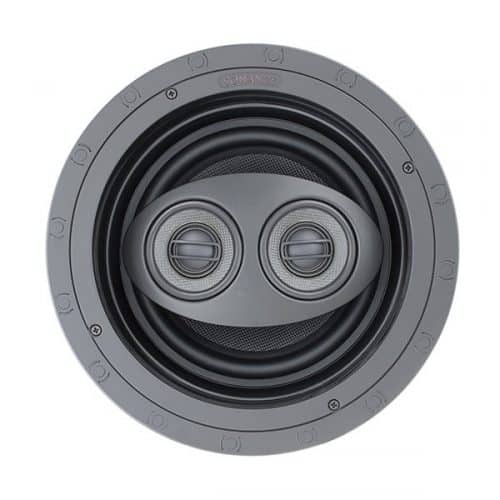

Sonance Visual Performance VP86R SUR/SST 8" (each)

Sonance Visual Performance VP86R SUR/SST 8″ round single stereo/surround speaker (each)

Posted by rococosystems in
No Comments

Call for Price

From the company that invented the category, comes the best sounding, best looking and most complete range of in-wall and in-ceiling speakers ever. Visual Performance® Series comes in various shapes and sizes to compliment down lights and décor and a complete range that allows you to enjoy a consistent aesthetic for any application in any room.

Add to quote

Categories: In Wall/Ceiling Speakers, Sonance, Speakers

Description

Description

SST = Single Stereo Technology, mono summing
SUR = Surround

SST/SUR is a combination of SST and SUR in one speaker

Uses a switch on the crossover cover to select between SST or SUR

Absolute best sonic performance at all price points

Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance

Latest high-tech driver and tweeter material technology

Improved low frequency performance
Improved driver cone materials
Low diffraction driver design
Pivoting woofers on VP62R, VP66R and VP86R
Chambered midrange and tweeter design on all models

The chambered tweeter design does the following

Lowers the resonance frequency of the tweeter
Allows for a lower crossover frequency to the woofer
Reduces the back pressure on the tweeter dome
Reduces the distortion of the tweeter near the crossover frequency

Easier to install

Easier to access Roto-Lock® screws
Removed metal hang tabs
One-piece paintable grille with peel and stick scrim cloth for easier painting
Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials

Tweeter	Two 1″ (25mm) powder coated aluminium dome, Ferrofluid-cooled, in acoustic back chamber
Mid Range	Two 3″ (76mm) Kevlar / Nomex laminated cone with a rubber surround
Woofer	8″ (203mm) Kevlar / Nomex laminated cone with a rubber surround, dual voice coil, pivoting
Frequency Response	34Hz – 20kHz ±3dB
Impedance	8 ohms nominal – 6 ohms minimum
Power Handling	5 watts minimum – 150 watts maximum
Sensitivity	91dB SPL (2.83V/1 meter)
Grille	Perforated steel
Adjustments	Rear SST to SUR switch on crossover cover
Dimensions (Dia. x D)	11 5/8″ x 5 7/8″ (295mm x 149mm)
Dimensions with Square Grille (W x H)	11 3/4″ x 11 3/4″ (299mm x 299mm)
Cut-Out Dimensions (Dia.)	10 1/8″ (257mm)
Shipping Weight	10 lbs (4.5kg) each
